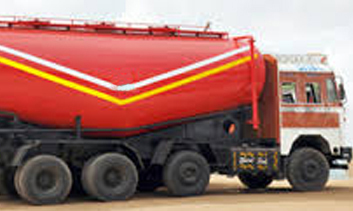

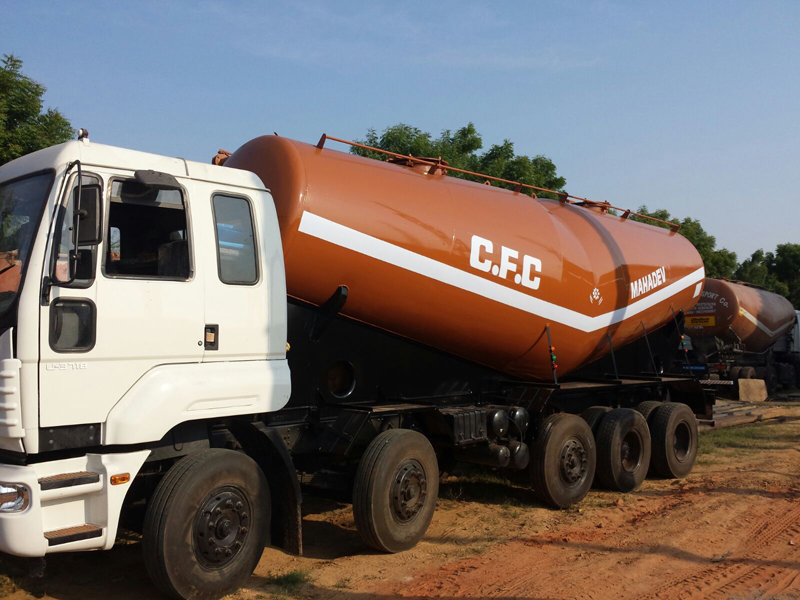

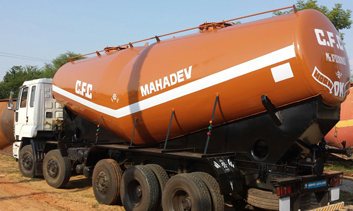

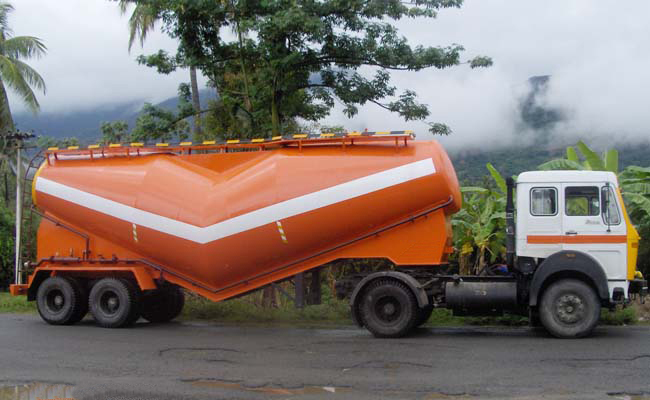

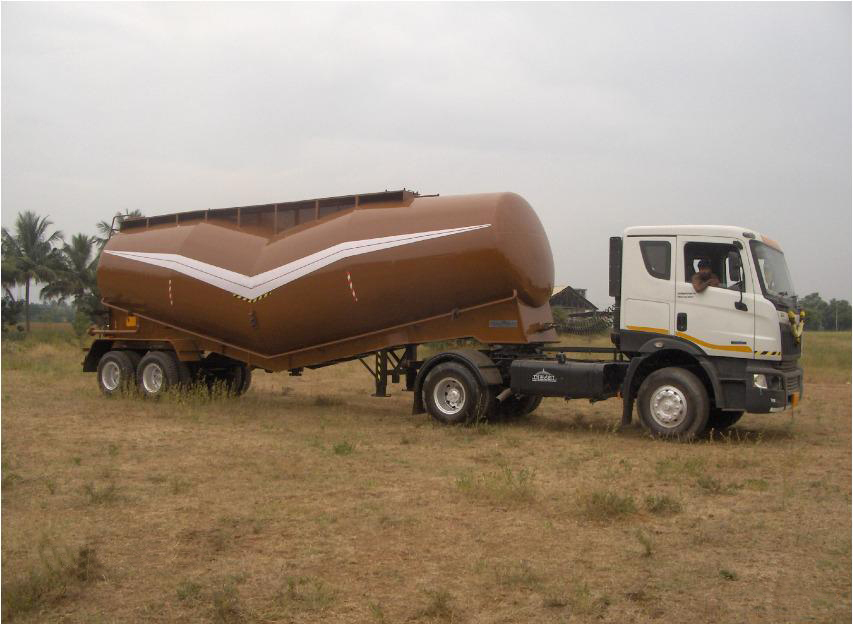

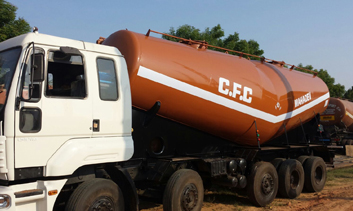

volume |
approx. 27 m³ |
||
suitable vehicle |
10 wheeler and 12 wheeler |
||
type |
for long chassis |
for short chassis |
|
total length |
approx. 7250 mm |
approx. 6600 mm |
|
diameter of vessel |
approx. 2430 mm |
approx. 2540 mm |
|
height above top of chassis frame |
approx. 2980 mm |
approx. 3040 mm |
|
tare weight |
approx. 3200 kg |
approx. 3250 kg |
|
material to be handeled weight |
fly ash |
approx. 24. 3 mt |
|
cement |
approx. 32. 4 mt |
||
design pressure |
2. 5 kg/cm² |
||
operating pressure |
2 kg/cm² |
||
manholes |
qty |
2 nos. |
|
size |
dn 450 or dn 600, size to be confirmed by the client |
||
air inlet pipe |
3′ with coupler at one end |
||
material outlet pipe |
5′ with coupler at one end |
||
valves |
inlet |
3′ butter fly valve |
|
oulet |
5′ butter fly valve |
||
nrv |
flap type |
||
testing |
air test at 2. 5 kg/cm² |
||
safety |
2′ pressure relief valve at air inlet pipe |
||
1′ ball valve at air inlet pipe |
|||
3′ pipe from the tank with butter fly valve at one end |
|||
loading |
through manholes |
||
unloading system |
by means of pneumatic pressure with dry air |
||
fluidization |
an aeration pads made of synthetic material in tube form for better fluidization |
||
paint |
two coats of zinc phosphate primer and two coats of synthetic enamel paint at external surface. |
||
other accessories |
mud guards , two catwalks with rail and ladder |
||

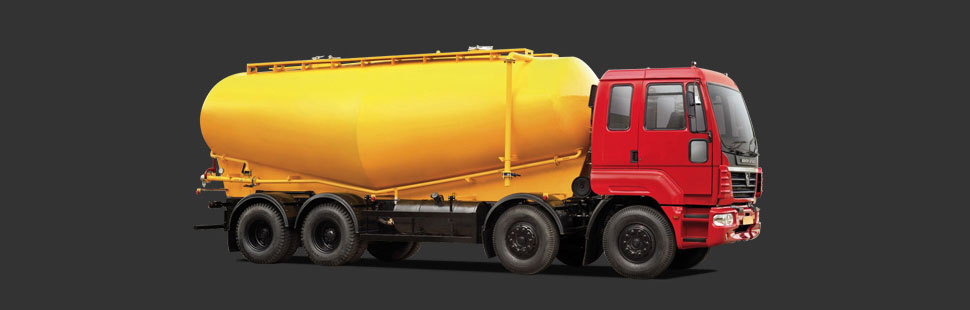

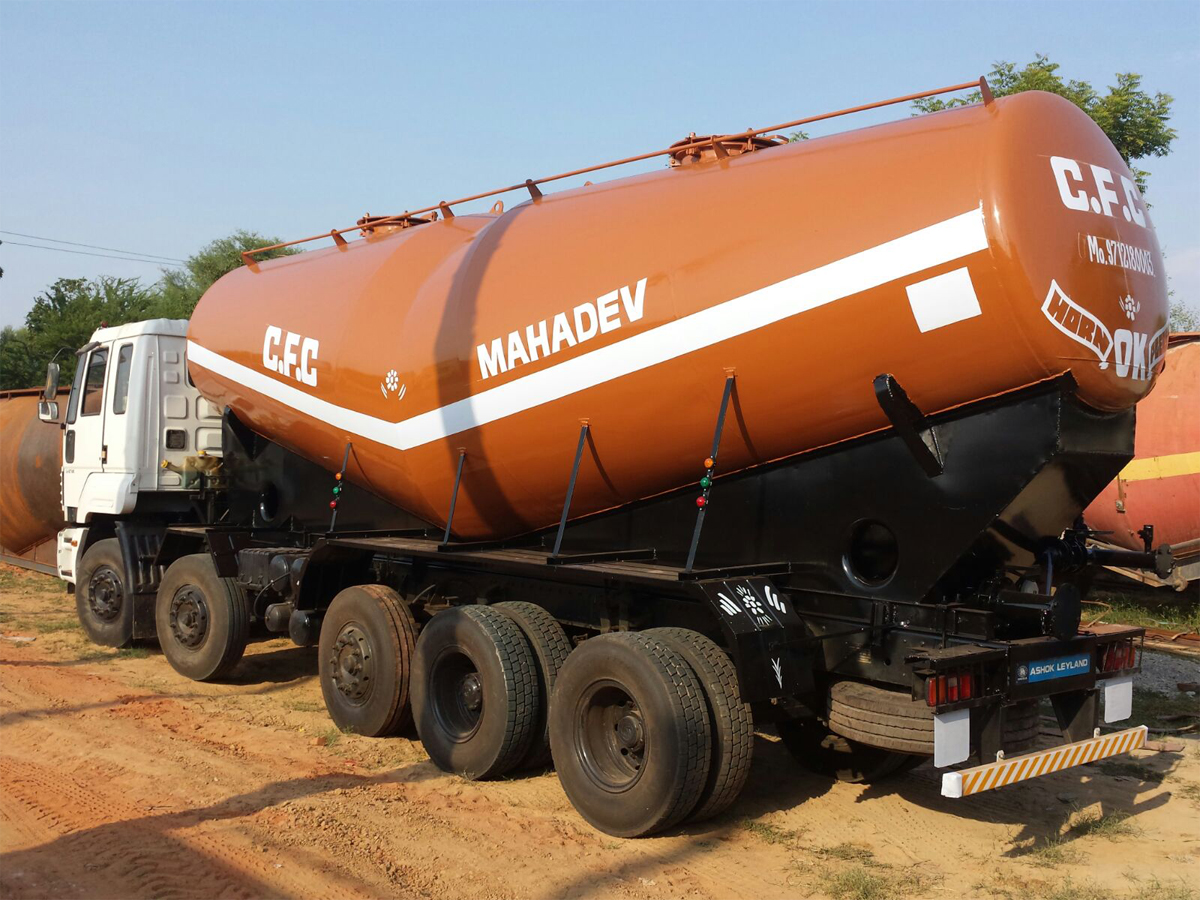

VOLUME |
approx. 30 M³ |
|
SUTABLE VEHICLE |
12 wheeler AND 14 wheeler |
|
TOTAL LENGTH |
approx. 7520 mm |
|
DIAMETER OF VESSEL |
approx. 2540 mm |
|
HEIGHT ABOVE TOP OF CHASSIS FRAME |
approx. 3040 mm |
|
TARE WEIGHT |
approx. 3630 KG |
|
MATERIAL TO BE HANDELED WEIGHT |
FLY ASH |
approx. 27 MT |
CEMENT |
approx. 36 MT |
|
DESIGN PRESSURE |
2.5 Kg/cm² |
|
OPERATING PRESSURE |
2 Kg/cm² |
|
MANHOLES |
QTY |
2 Nos. |
SIZE |
DN 450 or DN 600, Size to be confirmed by the client |
|
AIR INLET PIPE |
3″ With coupler at one end |
|
MATERIAL OUTLET PIPE |
5″ With coupler at one end |
|
VALVES |
INLET |
3″ Butter fly valve |
OULET |
5″ Butter fly valve |
|
NRV |
Flap type |
|
TESTING |
Air test at 2.5 kg/cm² |
|
SAFETY |
2″ Pressure relief valve at air inlet pipe |
|
1″ Ball valve at air inlet pipe |
||
3″ Pipe from the tank with butter fly valve at one end |
||
LOADING |
Through manholes |
|
UNLOADING SYSTEM |
By means of pneumatic pressure with dry air |
|
FLUIDIZATION |
An aeration pads made of synthetic material in tube form for better fluidization |
|
PAINT |
Two coats of zinc phosphate primer and two coats of synthetic enamel paint at external surface . |
|
OTHER ACCESSORIES |
Mud guards , Two Catwalks with rail and Ladder |
